OMX-SRM is suitable for detecting odor in lavatories, measuring cigarette smell

Handheld Odor Meter

Product Information / OMX-SRM

For measuring odor in lavatories, measuring smell of cigarettes,
medicines, foods and odor from production process.

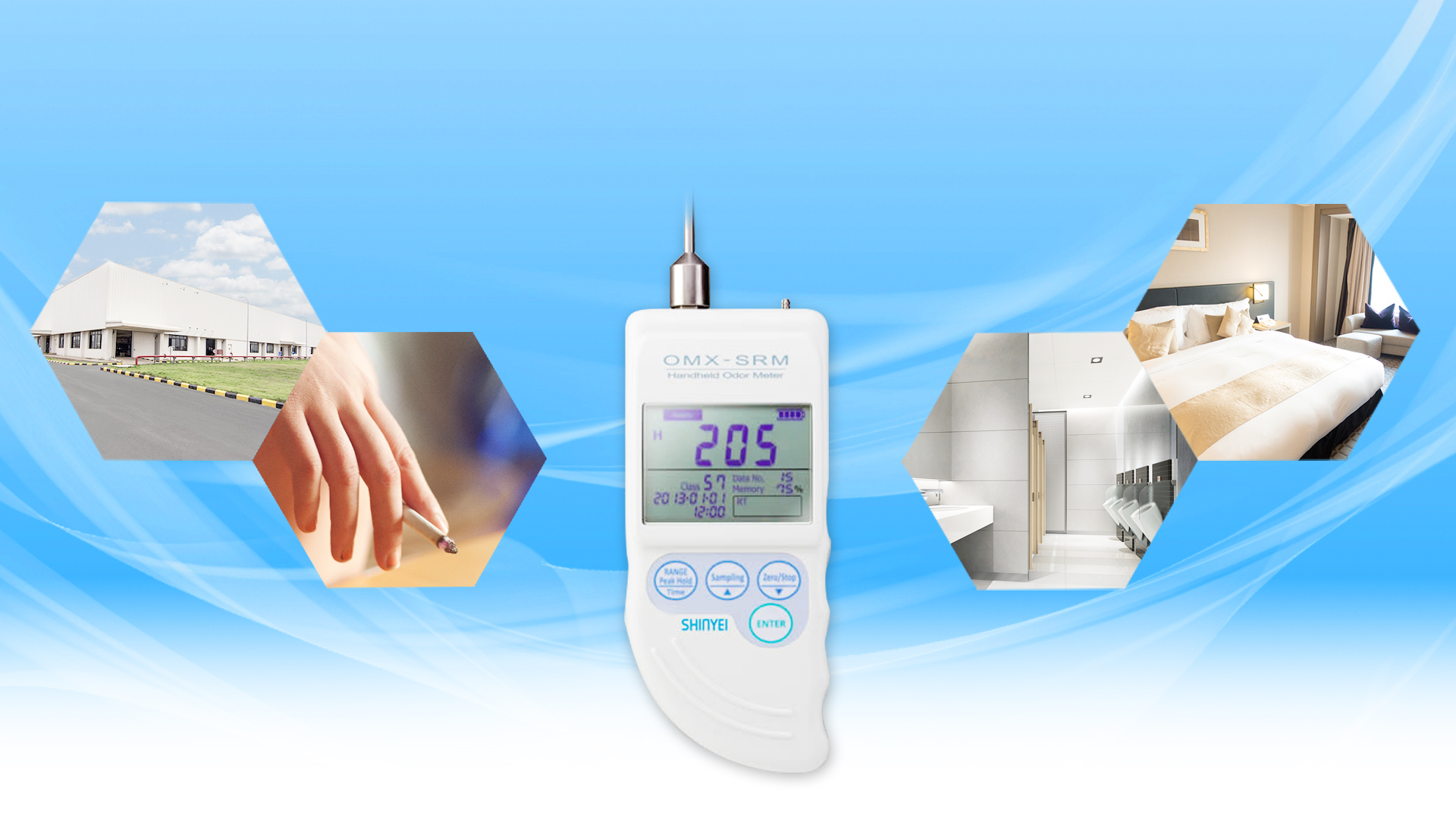

Handheld Odor Meter OMX-SRM

Handheld Odor Meter

Handheld Odor Meter is highly sensitive.

  • Simple and
    easy to
    measure odor
  • Just turn
    the switch on
  • Data can be
    stored up
    to 511 files
  • Data logging function with
    large capacity
  • Data can be graphically
    illustrated by
    Data filing software

Handheld Odor Meter OMX-SRM is suitable for detecting odor in lavatories, measuring and sensing smell of cigarettes, medicines, foods and odor from production process.

Handheld Odor Meter
  • Display odor strength level in numeric values.
  • Select two display mode of High and Low range.
  • Display odor tendency in numeric values.
  • Check the effect of deodorization before and after deodorizing.
  • Detect odor when preparing medicines
  • Measure odor level in lavatories before and after cleaning.
  • Detect various odors in daily life.
  • Monitor odor from production process in food factories.

Handheld Odor Meter

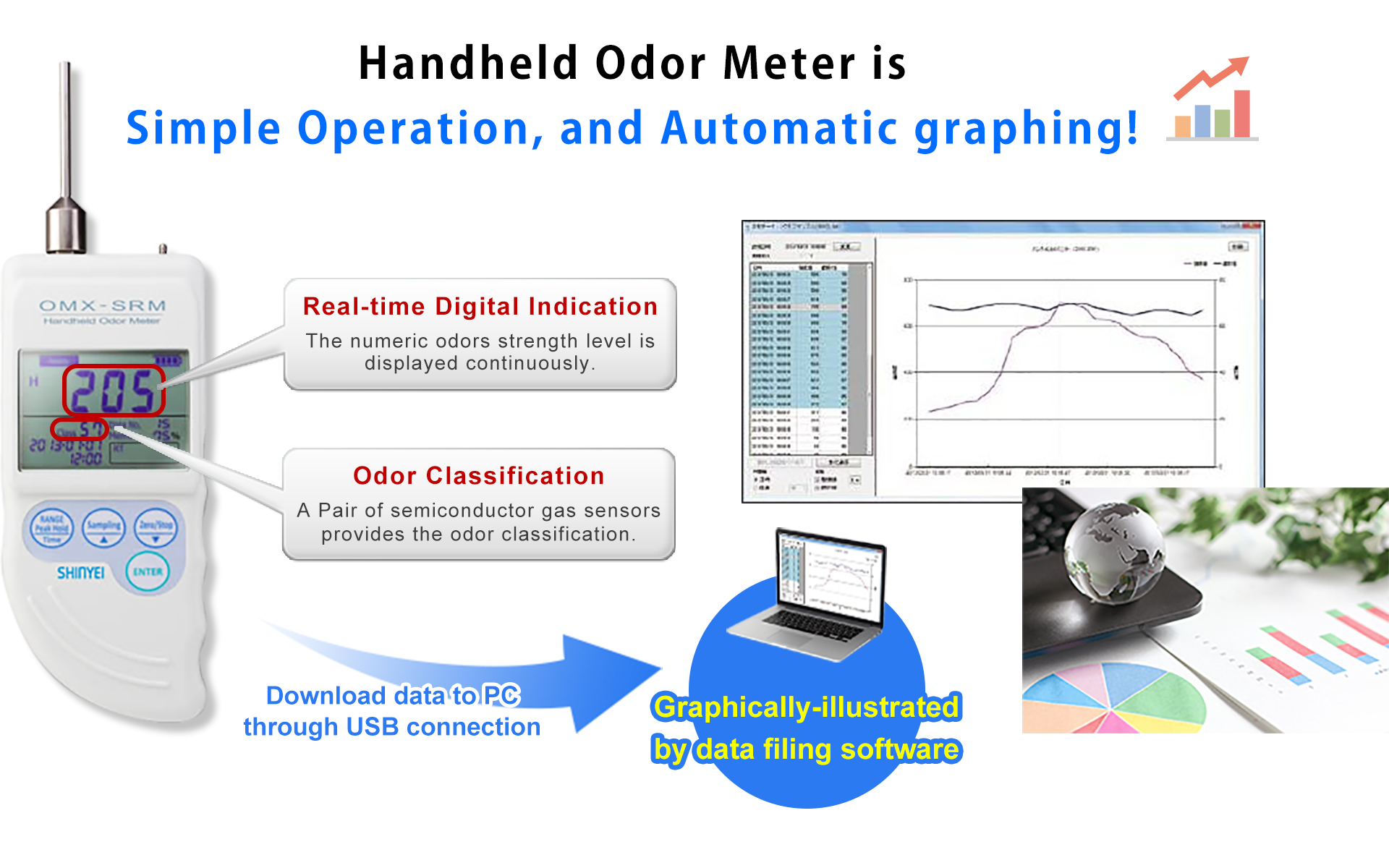

Real-time Digital Indication

The numeric odor strength level is displayed continuously.

High range and Low range function

High range is from 0 to 999, Low range is from 0.0 to 99.9. Recommend use Low range for measuring low concentration gas, and High range for measuring high concentration gas.

Odor Classification

A pair of semiconductor gas sensors provides the odor classification.

Notice:

a) OMX takes odor sampling by using inner pump and shows odor strength level.The strength level is calculated by our original formula using two types of gas sensors that responds to different types of gases.

b) OMX detects complex odor and convert it to odor strength level, which means it doesn't classify types of odor.

c) The strength level showed in OMX doesn't correlate with human sense of odor.

d) OMX does not detect odor well if the gas concentration is not high enough for the device.

  • How to Start and Measure
    How to Start and Measure
  • Main Functions and Maintenance Procedure
    Main Functions and Maintenance Procedure Please select English translation.
Specification
Model Name OMX-SRM
Detection Method Two Semiconductor Gas Sensors
Sampling Method Continuous Sampling with Built-in Air Pump
Object Gas Ethanol, Acetone, Hydrogen, etc
Odor Strength Level 0.0 - 999
Classification Class 0 ~ 90
Power 4×AASize Alkaline Batteries or AC Adaptor
*Battery life for continuous measurement is approx. 7 hours.
Memory Capacity Up to 32,732 Data
Memory Partition Up to 511 Files
Operating Temperature 0 ~ 40℃(32-104F) *No Dew Condensation
Storage Temperature -10 ~ 50℃(14-122F) *No Dew Condensation
Dimensions W74 X L167.5 X D35mm approx.
Weight 250g approx. (Without Batteries)
Accessories USB Cable, Air Purifying Unit, Activated Carbon, 4×AA Size Alkaline Batteries, AC Adaptor
